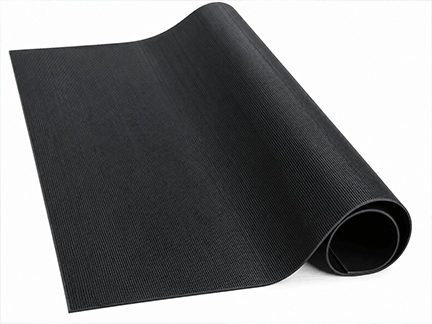

Electrical Insulation Mats are generally used for covering the floor below the control panels. These Insulating Mats are manufactured using elastomer (latex, rubber and elastomericcompounds that might be natural, synthetic or mixture of both) all along with antiskid aberrations on the top to avoid slippage and smooth, lower surface. High Voltage Mats are manufactured as per latest Indian Standard and have been successfully tested and approved by DGS&D, ERDA, CPRI, NTH and other NABL accredited labs.

INSULATION RESISTANCE MEASURED BY 5000 V MEGGER:1,00,000 M Ohms (Min.) LEAKAGE CURRENT:10 mA (Max.) THICKNESS, CLASS & VOLTAGE CLASSIFICATION 2 mm: Class - A, Working Voltage - Up-to 3.3 KV, Di Electric Strength - 30 KV, AC Proof Voltage - 10 KV 2.5 mm: Class - B, Working Voltage - Up-to 11 KV, Di Electric Strength - 45 KV, AC Proof Voltage - 22 KV 3 mm : Class - C, Working Voltage - Up-to 33 KV, Di Electric Strength - 65 KV, AC Proof Voltage - 36 KV

Application: Near HT/LT Control Panels, In front of Switchboards, Electrical Substations, Around Bus Bars, Transformers, Generator & Lift Rooms, Outdoor/Indoor On-site use on Live Equipment.

Width : 1 / 1.2 / 1.5 Meter.

Length : Standard 10 Meters (Can be made up-to 100 Meters in single length on request)

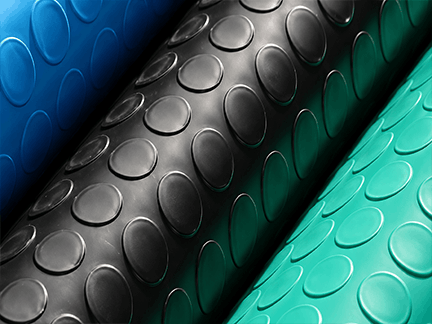

Colour : Blue/Black/Red/Grey/Green/Yellow/Orange
